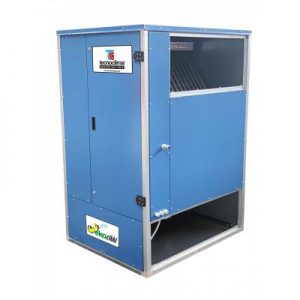

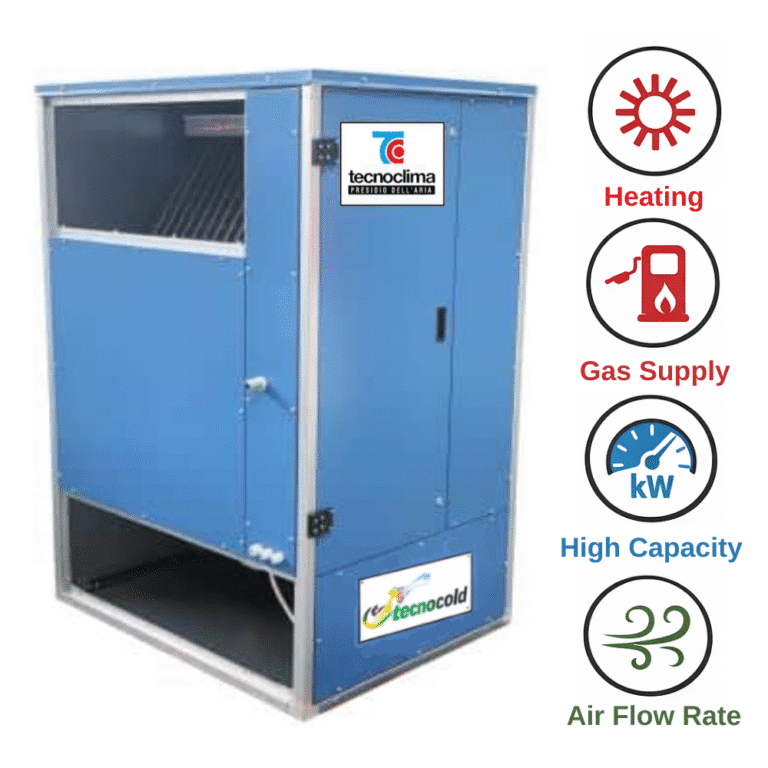

תנור אוויר חם תעשייתי Tecnoclima EKOCIKKI 80

Warm Air Heaters

תיאור

תנור אוויר חם תעשייתי EKOCIKKI 80 מבית Tecnoclima.



New warm air heater with heat exchanger for poultry. Compact, efficient, eco-friendly.

EKOCIKKI 80 series responds to the growing breeders need to have air heating systems with clean air.​

sop resize 600 %D7%9C%D7%9B

EKOCIKKI 80 high efficiency, reliability, safety

  • High quality materials: possibility of outdoor and indoor installation
  • Innovative heat exchanger: compact warm air heater, high efficiency
  • Atmospheric burner operating with natural gas or liquid gas: safe and reliable technology even in tough environment conditions
  • Capacity output 70kW, air temperature deviation 32 °C: clean air at a mild temperature



EKOCIKKI 80 installation flexibility

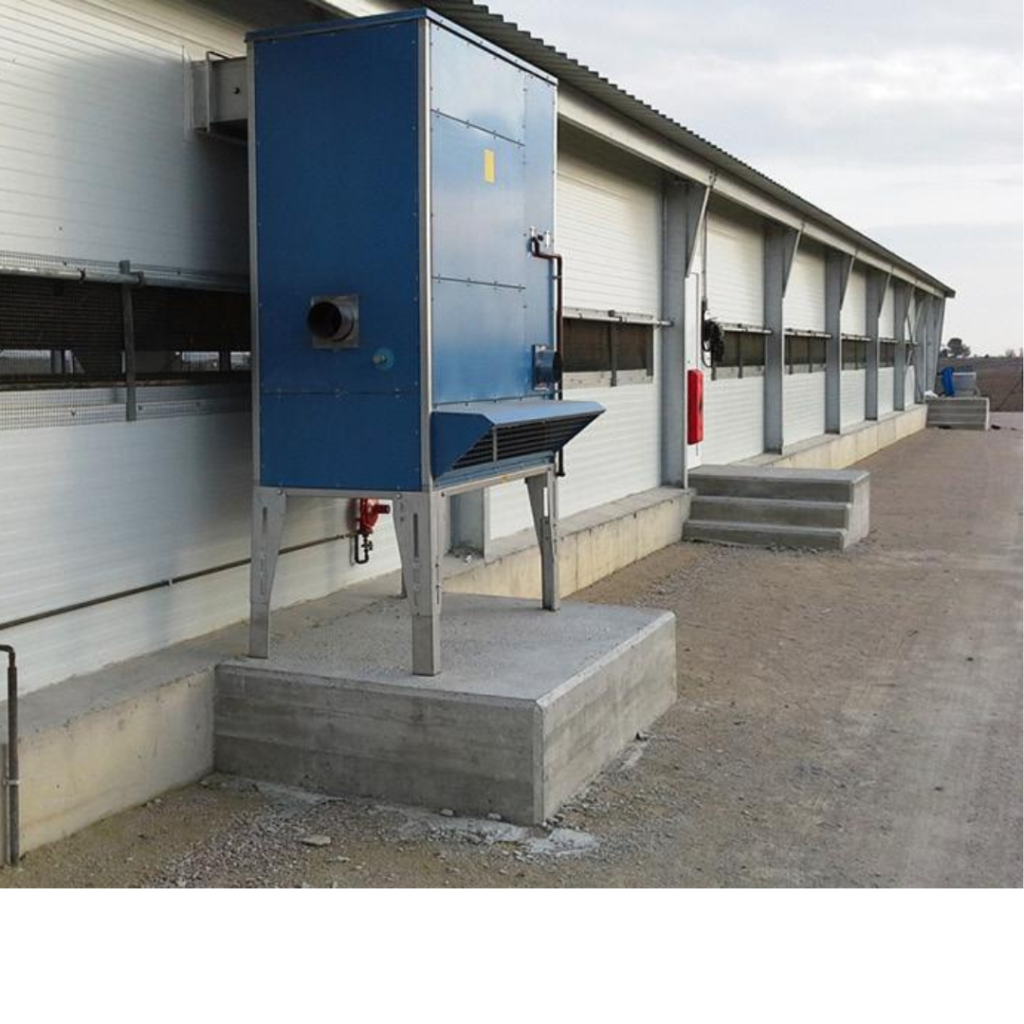

  • Outdoor installation: more space inside for poultry breeding, gas line is totally outside
  • Partial intake of outside fresh air- dual function: heating and air renewal
  • Plug and Play: easy and fast installation, factory settings do not require any additional intervention of highly qualified personnel
  • Maintenance friendly: no complex disassembly operations required during regular maintenance and cleaning



EKOCIKKI 80 well-being of birds, high productivity, significant savings

  • High efficiency: savings by reducing fuel consumption
  • Clean warm air: energy savings due to reduced need in ventilation
  • Outdoor installation: costs savings for insurance, zero risk of fire inside the poultry farm
  • No combustion products inside the farm: best quality environment for the healthy growth of birds



The innovative model EKOCIKKI 80 is an excellent alternative to direct-fired gas heaters that were traditionally used until today on poultry farms. Thanks to the heat exchanger technology of EKOCIKKI 80, emissions of CO2, CO and NOx are totally excluded from warm air supplied to the environment, providing healthy conditions for poultry growth and decreasing necessity in ventilation.

Warm air heater EKOCIKKI 80 includes special innovative and internationally patented heat exchanger that permits to keep compact dimensions of the heater, reaching very high thermal efficiency. The combustion chamber and the heat exchanger are completely made of stainless steel inox AISI 430.

Warm air heater EKOCIKKI 80 supplies warm air directly into the environment without air ducts. It can be configured for outside or inside installation and allows to use fresh or internal return air as well as to mix the necessary amount of them. Thanks to the pre-painted stainless steel external case with IP 44 protection degree, EKOCIKKI 80 is resistant to any weather conditions and can be installed outdoors without additional protection, saving precious space inside the farm for poultry breeding.

EKOCIKKI 80 is equipped with the atmospheric burner and provides high efficiency working with natural gas, propane or butane. The flame is completely inside the combustion chamber made of materials resistant to thermal loads and corrosion. Thanks to clean warm air supplied by EKOCIKKI 80 and decreased humidity level in the environment, less ventilation and lower air exchange rate are required, ensuring important advantages in terms of energy savings and the quality of the environment for healthy birds growth

מפרט טכני

Model U.M. EKOCIKKI 80
Heating capacity input kW 77,8
kcal/h 66.900
Heating capacity output kW 70,0
kcal/h 60.200
Efficiency % 90,0
Nominal air flow m3/h 6.500
Air temperature deviation (ΔT) K 32,0
Electrical power kW 1,0
Electrical supply three-phase 230V – 50Hz 3N

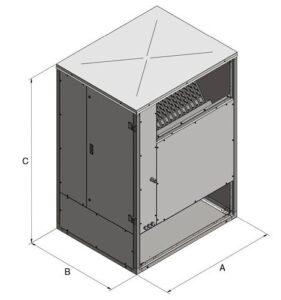

Diemensions

Model Width (A), mm Lenght (B), mm Hight (C), mm Ø A, mm Ø C, mm Weight, kg
EKOCIKKI 80 900 1130 1600 100 100 300

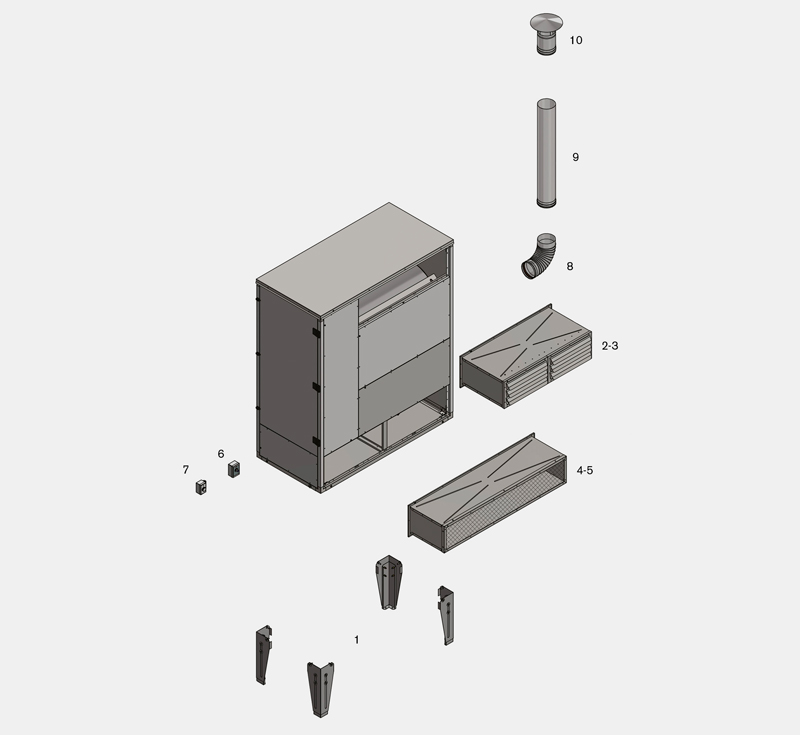

מאפיינים נוספים

INSIDE INSTALLATION​

OUTSIDE INSTALLATION​
