מצנן מים אוויר Munters 30000m³/h

Evaporative Air Cooler

תיאור

  • Adopt belt gearing centrifugal fan

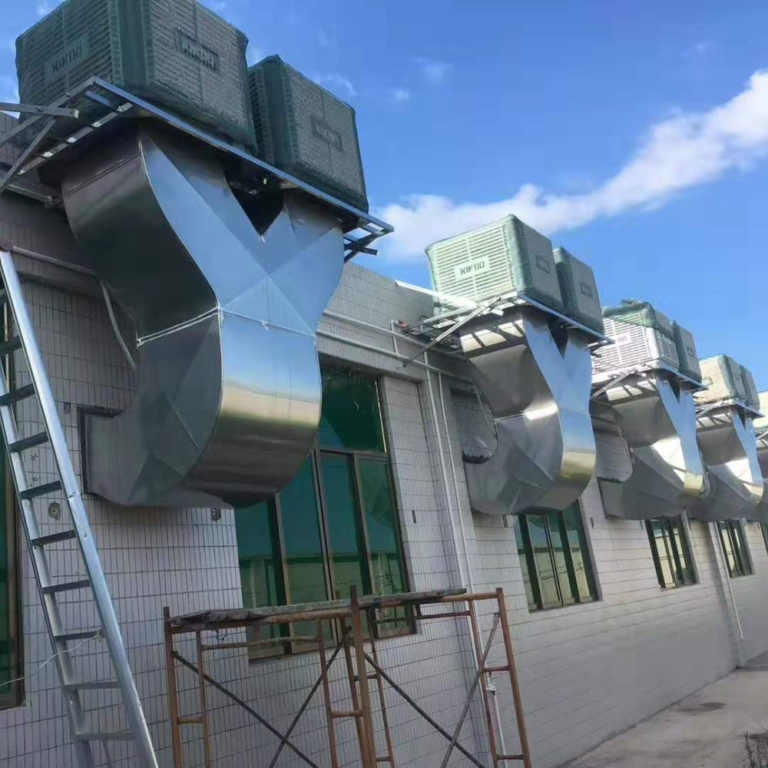

  • Suitable for large workshop, Applicable to cool a 150~300m2 plant in humid area and a 200~500m2 plant in dry area.
  • With large airflow and air pressure.
  • The air delivery distance is more than 50m.
  • 201# or 304# Stainless steel shell, solid and durable.
  • High efficient evaporator, high evaporate rate, good cooling down effect.

מאפיינים נוספים

מצנן מים אוויר Munters 30000m³/h



Air cooler components:
1. 100mm thickness 5090# cooling pads.
2. Control system.
3. Water pump and drain pump.
4. Water distribution system.
5. Cast iron motor bod
6. Body case.
7. Fan Blades.
8. Molor Support



Cooling Ability:

cooling pads



1. 100mm thickness 5090# cooling pads. Raw material from Jia Mu Si, deodorant treatment, more than 80% evaporate rate. Perfect edge protection, 3 years warranty.









Control system



2. Control system. Flame-retardant PCB control box. Damp proof, fast heat dissipation. LCD display with remote controller. All kinds of protection function. (380V: Printed circuit board, one wind speed.)









Water pump and drain pump





3. Water pump and drain pump. Ceramic shaft submersible pump. Barrier-free mechanical drain pump, corrosion resistance and efficient performance, 30000 hours continuously working life.







Water distribution system





4. Water distribution system. PVC water pipe. Open water diversion plate, not easy to jam. Anti-corrosion. Water supply evenly. Long working life.









Cast iron motor body



5. Cast iron motor body. Motor bearing import from Japan, 100% copper-wire motor winding. Water-proof Rate IP 54, INS Class B. Long working life time, 2 years warranty.









Body case



6. Body case. 100% New PP material, not recyclable, anti-UV, anti-corrosion, anti-aging, better heat-resistant performance: <60℃, 8 years warranty, more than 12 years lifetime.









Fan Blades





7. Fan Blades. Nylon and glass fiber material, including three/four/nine blades (different shape meet different air flow demand). Passing dynamic balance test before using.







Motor Support



8. Motor Support. Our own injection mould. Aluminum alloy material (ADC12), good load-bearing (500kgs), anti-rust, anti-corrosion. Using stainless steel screw to connect.

שתפו מוצר זה:

שיתוף ב facebook
שיתוף ב whatsapp
שיתוף ב email

מתעניינים במוצר זה? צרו קשר

מפרט טכני

Model Airflow Voltage/Hz Power Wind Pressure N.W. Noise Air Delivery(pipeline)

Air Output

XK-30S-UP 30000m³/h 380V 3Kw 300Pa 128Kgs

>90db

40-50m

790*790

XK-30S-DOWN 35000m3/h 3Kw 300Pa 120Kgs

>90db

40-50m

790*790
