Product Overview:
1. Adopt belt gearing centrifugal fan.
2. Suitable for large workshop, Applicable to cool a 150~300m2 plant in humid area and a 200~500m2 plant in dry area.
3. With large airflow and air pressure.
4. The air delivery distance is more than 50m.
5. 201# or 304# Stainless steel shell, solid and durable.
6. High efficient evaporator, high evaporate rate, good cooling down effect.
Air Delivery
Air Output | Noise | N.W. | Wind
Pressure | Power | Voltage/Hz | Airflow | Model |
| 30-55m | <100dB | 300Kgs | 406-505Pa | 5.5Kw | 380/50Hz | 30000m³/h | XK-30S |
| 40-60m | <100dB | 350Kgs | 450-610Pa | 7.5Kw | 35000m3/h | XK-35S |
50-70m
| <100dB | 400Kgs
| 515-703Pa
| 11Kw
| 45000m3/h
| XK-45S
|
| 50-100m | <100dB | 450Kgs | 616-790Pa | 15Kw | 50000m3/h | XK-50S |
|
|

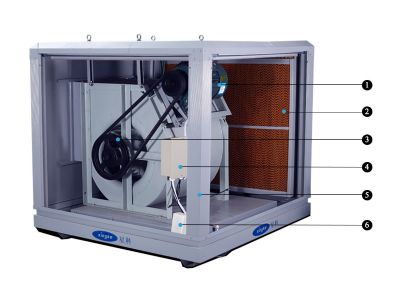

1. Cast iron motor body
2. 100mm thickness 5090# cooling pads.
3. Centrifugal Fan
4. Control System
5. Body case
6. Water pump and drain pump
|
 |
4.Control system. Flame-retardant PCB control box. Damp proof, fast heat dissipation. LCD display with remote controller. All kinds of protection function. (380V: Printed circuit board, one wind speed.) |  | 1.Cast iron motor body. Anti-corrosion. 100% copper-wire motor winding. Water-proof Rate IP 54,INS Class B. Long working lifetime, 2 years warranty. Power:5.5KW,7.5KW,11KW,15KW, 18.5KW...32KW. |  |
5. Body case. Spraying 201#stainless steel material. Anti-Corrosion, Anti-Rust, Better Heat-resistant performance. |  | 2.Cooling Pads.100mm thickness 5090# cooling pads. Raw material from Jia Mu Si, deodorant treatment, more than 80% evaporate rate. Perfect edge protection, 3 years warranty.
|  |
6. Water pump and drain pump. Ceramic shaft submersible pump. Barrier-free mechanical drain pump, corrosion resistance and efficient performance, 30000 hours continuously working life. |  | 3.Centrifugal fan. Belt-drive centrifugal fan Zinc coating centrifugal fan and volute. Anti-rust,Anti-Corrosion Stainless steel fastener,make sure stable operation. |  |
|
