מייבש לחות LUKO FD-D320K

Desiccant Dehumidifier

תיאור

מייבש לחות FD-D320K מבית LUKO.



This series is normally with low regeneration temperature.It is suitable for environment with surplus of heat.And it is usually apply in application that require to achieve low dew point.



KEY FEATURES

  • High Performance Desiccant Rotor with high moisture adsorption rate for reliable performance and continuous trouble-free operation. Lifespan of the Rotor wheel is 5 – 8 years under normal operating condition (non-corrosive environment and regeneration temperature of below 140°C)

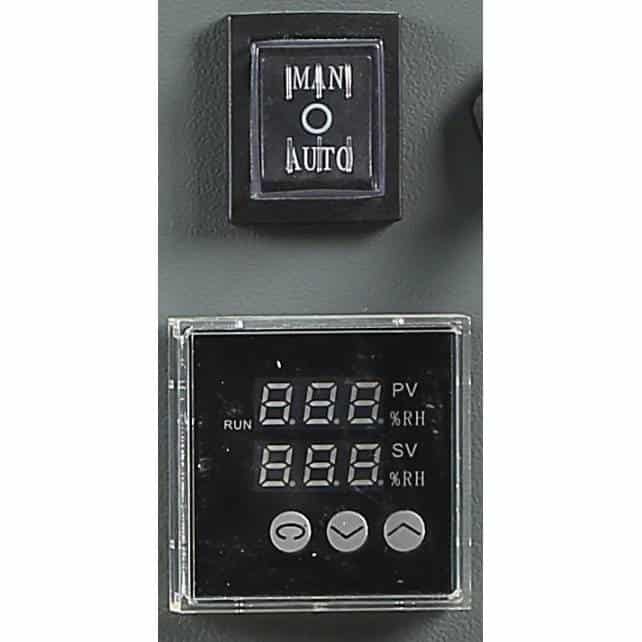

  • Come with advance touch control panel with built-in Honeywell Temperature and Humidity Sensor for real-time monitoring, which is easy to operate and user friendly.



  • Our desiccant dehumidifier is built-in with dual-speed adjustable centrifugal fan which can be set to run in High and Low speed for the Process Air Fan. It is also come with separate fan for Regeneration Air.



  • Simple and elegant design with unique frame for better sealing and insulation structure to reduce heat loss.



  • Body material build with SPCC metal and Power-Coated paint for better resistant over corrosion.



  • Built with reliable electrical component from well-known reliable brand. e.g. ABB, OMRON, Schneider and others.



  • Low operation cost and energy efficient. Our desiccant dehumidifier used PTC and SCR build heating technology with advance processor-controlled regeneration heat, which can save 20% -30% of power consumption.



  • Structure built for convenient installation and easy maintenance with replaceable F5 filter and washable rotor. It is also build according Fire Prevention Standard, to ensure safe operation of the machine.



  • Inlet and Outlet air of the machine is conformance to duct connection standard of ISO7807 to simplify air duct connection.



  • Equipment is conformance to TUV, GS, ROHS and CE Standards.

מפרט טכני

Capacity(@20°C,60%RH) 1.2kg/h
Process Air Flow 320m³/h (100PA)
Reactivation Air Flow 120m³/h (50PA)
Process air in & out ⌀125mm
Regen. air in & out ⌀80mm
Rated Power 1.9KW
Rated Current 8.3A
Primary Filter G4 efficiency
Heater Type PTC
Controller Type digital controller
Voltage /Frequency 220V/50Hz/1P
Applied Temperature  -20°C~60°C
Body Material Metal Steel with Powder Coated (optional: SUS304 – additional cost)
Weight 45KG
Dimension 578*421*705mm
*Technical Specifications and dimensions are subject to change without prior notice

BILL OF MATERIALS
Items Parts and Components Brand Manufacturer
Machine Main Body SPCC LUKO
Rotor Belt GOODUSE GOODUSE
Desiccant Wheel LUKO’s Custom Made Desiccant Wheel LUKO
Process Air Filter G7 primary filter / Or Custom Made LUKO
Regeneration Air Filter G7 primary filter / Or Custom Made LUKO
Alarm Indicator Device Schneider Schneider
Indicator Light Schneider Schneider
Power-On Button Schneider Schneider
Power-Off Button Schneider Schneider
Manual / Auto Switch Schneider Schneider
Delay Timer OMRON OMRON
Master Switch ABB ABB
Motor Protection Device Schneider Schneider
Air Switch Schneider Schneider
Intermediate Relay OMRON OMRON
AC Contactor Schneider Schneider
Process Air Fan German Rosenberg German Rosenberg
Regeneration Air Fan Fanshida Fanshida
Heater LUKO’s Custom made LUKO
Duct Flange Galvanized Type GANGYANG HVAC



מאפיינים נוספים
