תנור אוויר חם תעשייתי Tecnoclima DOU-MO

Warm Air Heaters

תיאור

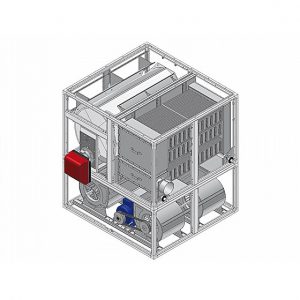

תנור אוויר חם תעשייתי DOU-MO מבית Tecnoclima.



Condensing instantaneous space heater with modulation of heating capacity and air flow rate.

The patented equipment TOTAL CONDENSATION AIR TREATMENT UNIT DUO-MO provides “just in time” controlled heating of the air according to the immediate needs of the premises to be treated, thanks to a continuous and consistent modulation of both heating capacity output and air flow rate.



HEATING SUPPLY
HEATING CAPACITY
AIR FLOW RATE
EFFICIENCY
caldo alimentazionealimentazione potenza termica portata rendimento

gas
oil
from 115
to 600
from 14.000
to 57.500
~ 108%


Peculiarity:

  • Maximum energy efficiency, with operation totally in condensation, even at maximum heating output.
  • Reduced consumption thanks to the very high thermal efficiency, between 102% and 109%.
  • 5 models with thermal capacity from 115 to 600 kW and air flow from 14.000 to 58.000 m3/h. Heat exchanger entirely in stainless steel AISI 304.
  • Combustion chamber entirely in AISI 430 stainless steel.
  • Optimal regulation thanks to the blown modulating gas burner, supplied complete with gas ramp, temperature probe and modulation control device.
  • Operation on two stages: at maximum air flow rate for a quick heating of the environment and at reduced air flow rate for a more silent and comfortable maintenance of the optimal temperature conditions.
  • Programmable remote control panel with room thermostat function supplied as standard.
  • Suitable for ducted or direct diffusion systems with air outlet plenum.



The equipment consist mainly of an isolated cabinet receiving the air flow produced by the ventilator group. The cabinet contains a new concept, INOX stainless steel high-efficiency heat exchanger which transfers the thermal power by means of direct exchange between combustion products and the air flow to be treated. Such air is heated when passing onto the exchanger’s hot surface and it is then distributed to the premises.

The centrifugal fan’s characteristics make the equipment suitable to be installed where high static pressure is required. During summertime, this equipment can also perform room ventilation only.

The direct exchange technology employed by this equipment requires lower installation costs but first and foremost it allows a tangible reduction of operating costs. The most important feature of this system is that heat is directly transferred to the premises to be heated, thereby avoiding inefficient transformation stages. The result is a much higher overall performance of the system.

This equipment’s UNIQUE PECULIARITY lies in the fact that it has been specifically designed and proportioned to ALWAYS work at flue gas condensation conditions covering all its heating capacity range (maximum and minimum values).

In order to curb the equipment dimensions and weight, it was necessary to fully optimize the overall exchange coefficient by a direct action on both the speed and direction of vector fluxes and energy receiving fluxes. This target could be achieved thanks to an innovative, unique and PATENTED structure of the heat exchanger with counter-current and crossed jets. Moreover, the valuable STAINLESS steel materials employed guarantee a safe, long-lasting functioning also at flue gas total condensation conditions.

The DUO-MO unit – thanks to its independent ventilator groups featuring modulating functioning and changeable air flow, as well as its heat exchanger with burner featuring modulating functioning and changeable heating capacity output – guarantees absolute ambient wellbeing and allows to control “just in time” both the equipment’s heating capacity and air flow rate in a continuous, consistent way according to the immediate needs of the premises to be treated.

Moreover, operating economy is maximized thanks to the functioning mode always at condensation conditions (maximum efficiency 108%).

A wide choice of accessories (such as filters, remote controls, diffusion plenums, regulation dampers, aspiration grids, inverters, etc.) come in to complete the product. The product’s project is covered by international patent rights. Product safety is certified by renowned and professional International Authorities.

  • Heat exchanger with four smokes rounds, combustion chamber in AISI 430 stainless steel, exchange pipes in AISI 304 stainless steel, complete with exhaust smokes collector with condensation discharge, inspection doors, chimney connection and burner mounting plate.
  • External casing in pre-painted galvanized steel with thermal insulation and complete with support frame.
  • Fan section with two high prerformance centrifugal twin fans with double polarity electrical motors and variable belt transmission.
  • Double speed fans
  • Electrical board for control and protection, three-phase motor 400V + 3N / 50Hz, equipped with one FAN-LIMIT double-thermostat (n° 1 with manual reset and n° 1 with automatic reset).
  • For gas burner version: double stage or modulating forced draught gas burner complete with electric device and gas train.

ממדים

Model Overall dimensions mm Chimney Ø mm Weight kg Weight (with package) kg
A B C D E
DUO-MO 115 1.250 1.250 920 1.000 100 150 640 660
DUO-MO 145 1.250 1.250 920 1.000 100 150 640 660
DUO-MO 245 1.490 1.610 870 1.050 170 180 980 1.000
DUO-MO 395 2.000 2.000 1.000 1.400 170 200 1.420 1.440
DUO-MO 615 2.400 2.400 1.250 1.500 170 250 2.130 2.150

שתפו מוצר זה:

שיתוף ב facebook
שיתוף ב whatsapp
שיתוף ב email

מתעניינים במוצר זה? צרו קשר

מפרט טכני

AERAULIC SECTION

Model

Unit

DUO-MO 115

DUO-MO 145

DUO-MO 245

DUO-MO 395

DUO-MO 615

Nominal air flow rate

Max

Nm3/h

14.000

14.000

23.000

37.000

57.500

Min

Nm3/h

9.100

9.100

14.950

24.000

37.400

Max. Useful static pressure

Pa

250

250

250

250

250

Absorbed power input

kW

2 x 2,2/0,75

2 x 2,2/0,75

2 x 4,0/1,2

2 x 5,5/1,7

2 x 11,0/3,7

HEATING SECTION

Gas heat exchanger – max output at condensing regime

Model

Unit

DUO-MO 115

DUO-MO 145

DUO-MO 245

DUO-MO 395

DUO-MO 615

Heating capacity input

kW

115,9

143,4

240,0

382,2

600,0

kcal/h

99.670

123.320

206.400

328.690

516.000

Max. useful heating capacity output

kW

120,0

147,6

246,0

393,7

618,2

kcal/h

103.200

126.940

211.560

338.580

531.650

Efficiency

%

103,4

102,9

102,5

103,0

103,0

Temperature deviation

K

26

31

31

31

32

























Gas heat exchanger – min output at condensation conditions

Model

Unit

DUO-MO 115

DUO-MO 145

DUO-MO 245

DUO-MO 395

DUO-MO 615

Heating capacity input

kW

53,3

69,3

115,4

182,3

291,6

kcal/h

45.810

59.590

99.270

156.750

250.780

Max. useful heating capacity output

kW

57,0

73,8

123,1

196,9

309,1

kcal/h

49.020

63.470

105.820

169.290

265.830

Efficiency

%

107,0

106,5

106,6

108,0

106,0

Temperature deviation

K

12

16

16

16

16



ELECTRICAL SPECIFICATIONS

Model Unit DUO-MO 115 DUO-MO 145 DUO-MO 245 DUO-MO 395 DUO-MO 615
Electrical supply V-50Hz 400 3N ~ TRIFASE
